Product Overview

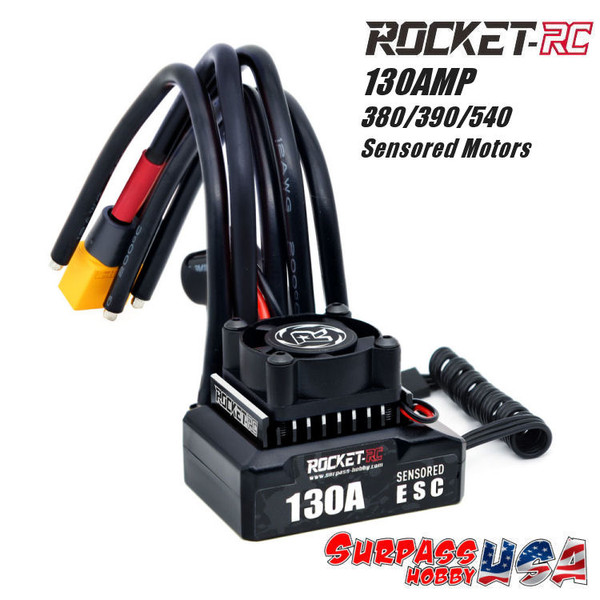

Rocket-RC 1/10 130Amp ESC with XT60 Plug 2S Lipo 5.5T+
Elevate your 1/10-scale RC performance with the ROCKET‑RC 130A Sensored Brushless ESC. Engineered for precision control and maximum power delivery, this electronic speed controller is packed with advanced features designed to give you the competitive edge on the track or the drift circuit.
Key Features
- Dual-Mode Versatility: Seamlessly switch between Race and Drift Modes (factory preset to Race Mode) to adapt your throttle response and handling characteristics to any driving style or track condition.
- Advanced Timing Technology: Built-in Boost and Turbo timing support (with up to 60° advance angle adjustment) unlocks maximum motor RPM and straight-away speed.
- Independent PWM Frequency Tuning: Fine-tune your driving experience with independently adjustable throttle and brake PWM frequencies for customized bite and braking feel.
- High-Performance Thermal Management: Includes a high-performance, removable cooling fan (reaching 23,000 RPM at 7.2V) designed for easy maintenance and superior durability during intense runs.
- Reliable Electronic Switch: Features a built-in electronic switch providing faster response times, higher precision, increased reliability, and extended service life.
- Robust Power & BEC Output: The integrated BEC delivers a stable 6V/5A output, easily powering high-torque digital servos and sensitive receivers.
Specifications
- Continuous Current: 130A
- Peak Current: 240A
- Voltage Input: 6V to 11V (2-Cell LiPo Max)
- Motor Limit: ≥5.5
- Compatible Motor Types: Sensored 380, 390, and 540 Brushless Motors
- Operation Modes: Forward / Brake / Reverse (Factory preset to Forward / Brake)
- BEC Output: 6V / 5A
- Dimensions: 44.5 x 39.5 x 31mm(including cooling fan)
- Weight: 88g (including wires)
- Connections: Pre-installed XT60 battery plug with direct solder motor wires
Program & Customization
- Adjustable Motor Rotation: Easily configure CCW or CW motor rotation using the programming setup.
- Optional Accessory: Fully compatible with the Rocket-RC Program Card (FP-100010-01) for deep parameter adjustments, including refined 1% increments (1% to 99%) for ultimate control tuning.
