Product Overview

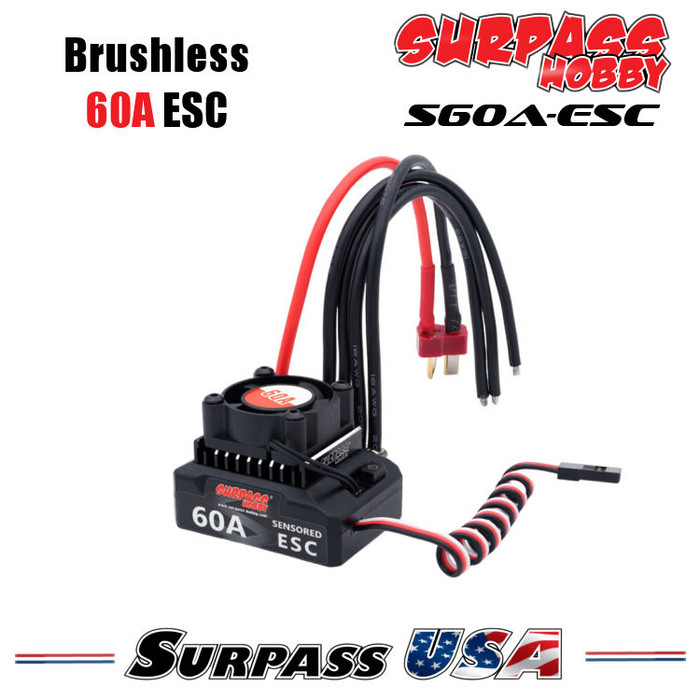

Surpass Hobby 1/10 S60A Brushless Sensored ESC w/ T-Plug 2-3S
Features:
- 32-bit processor, data processing capabilities strong.
- Supports two programmable parameter adjustment methods.
- Built-in 3A/6V BEC.
- Adjustable throttle and brake PWM frequency.
- With High-performing Removable cooling fan(23000rpm/7.2V).
- Suitable for 1/10 and 1/12 RC car.
S60A Specifications:
- Voltage input: 2-3S
- Continuous current: 60A
- Peak Current: 360A
- B.E.C: 6V/3A
- Built in switch
- Switch Function: Switch+Throttle Range Setting+Programming
- Fan: 25mm
- Capacitor: 470μFx1
- Cable: 16AWG x 150mm T-Plug for battery
- Direct solder motor wires
- Motor: Sensored Brushless 380, 390, 540>17.5T
- Dimension: 43.7 x 38.8 x 30.2mm (including fan)
*Optional LED Program Card FP-100010-03
