Product Overview

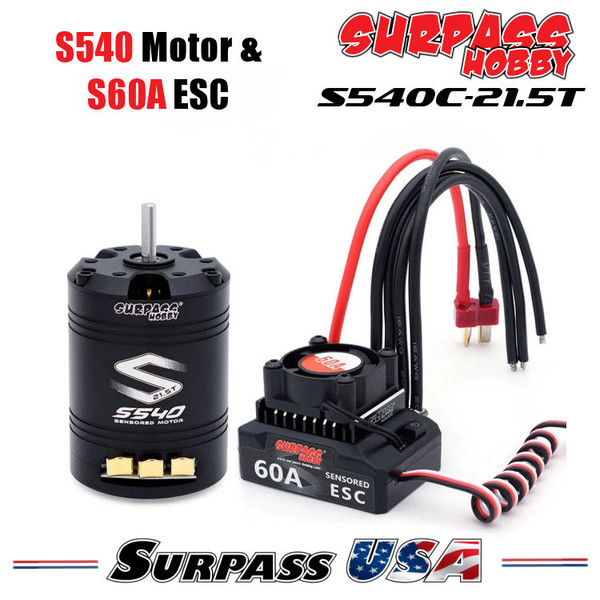

Surpass Hobby 1/10 S540 Combo 21.5t Fixed Timing Motor w/ S60A ESC
Motor Features:
- All machined aluminum alloy can
- High-temperature-resistant copper wire has stable performance.
- Precision bearing, smooth performance, and wear-resistant.
- High-quality sator design with 0.35mm silicon steel sheet, for low heat generation, and high efficiency.
- Suitable for a 1/10 & 1/12 RC Car.
- Available in a 17.5t and 21.5t
S540-21.5T SPECS:
- KV(RPM/Volt): 1980KV (est.)
- MAX Watts: 100W
- Lipo (S): 1-3S
- Max Amps: 28A
- Rotor Poles: 2
- Resistance: 60.5
- Turns: 21.5t
- Shaft(mm): 1/8" (3.175mm)
Features:
- 32-bit processor, with strong data processing capabilities.
- Supports two programmable parameter adjustment methods.
- Built-in 3A/6V BEC.
- Adjustable throttle and brake PWM frequency.
- With a High-performing Removable cooling fan(23000rpm/7.2V).
- Suitable for 1/10 and 1/12 RC cars.
S60A Specifications:
- Voltage input: 2-3S
- Continuous current: 60A
- Peak Current: 360A
- B.E.C: 6V/3A
- Built-in switch
- Switch Function: Switch+Throttle Range Setting+Programming
- Fan: 25mm
- Capacitor: 470μFx1
- Cable: 16AWG x 150mm T-Plug for battery
- Direct solder motor wires
- Motor: Sensored Brushless 380, 390, 540>17.5T
- Dimension: 43.7 x 38.8 x 30.2mm (including fan)
*Optional LED Program Card FP-100010-03
