Product Overview

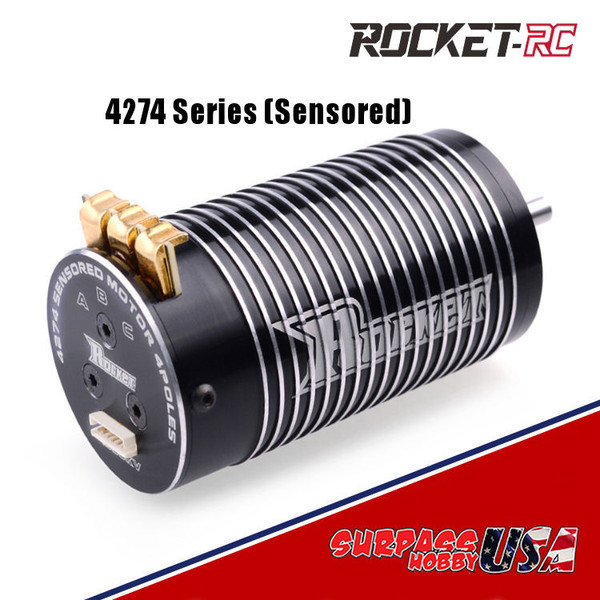

4274 Rocket-RC 1/8 2250Kv Long Sensored Brushless Motor
Rocket 4274
Specifications:
- 1/8 Off-Road Racing (Buggy & Truggy)
- 4274 Sensored Brushless Motor
- Can Dia: 42mm (with Heatsink Fins)
- Can Length: 74mm Long Can
- 5mm Motor Shaft
- Weight: 380g avg.
- 2250Kv avg.
- Max Voltage: 22 Volts
- Max 5 Cell Lipo
Features:
- Sensored Brushless Motor for 1/8 Competition
- Fixed Timing
- 4 Pole 12 Slot Hi-Torque Motor Design
- CNC Machine 6061 T6 Billet Aluminum Heatsink Can Design
- High Purity Copper Windings Maximizes Efficiency
- High RPM ABEC 5 Oversized Bearings
- Universal Fit, Fits all 1/8 On-Road and Off-Road Vehicles. Multi Mounting System for M3 and M4 Motor Screws
- Precision Balanced Rotor for Smooth Operation and Maximum RPM
- Stator - Super Thin (0.2mm) Laminations
- Precision Engineered for Maximum Energy Conversion
- IFMAR, ROAR, BRCA and EFRA Design Compliance
Includes:
- Includes a 150mm Super Flexible Flat Sensor Wire

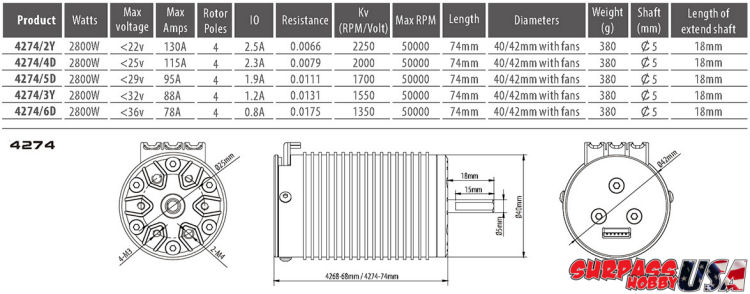

* Images represent the design and features of the 4274 Rocket Motor, but not the actual Kv markings of the motor.
