Product Overview

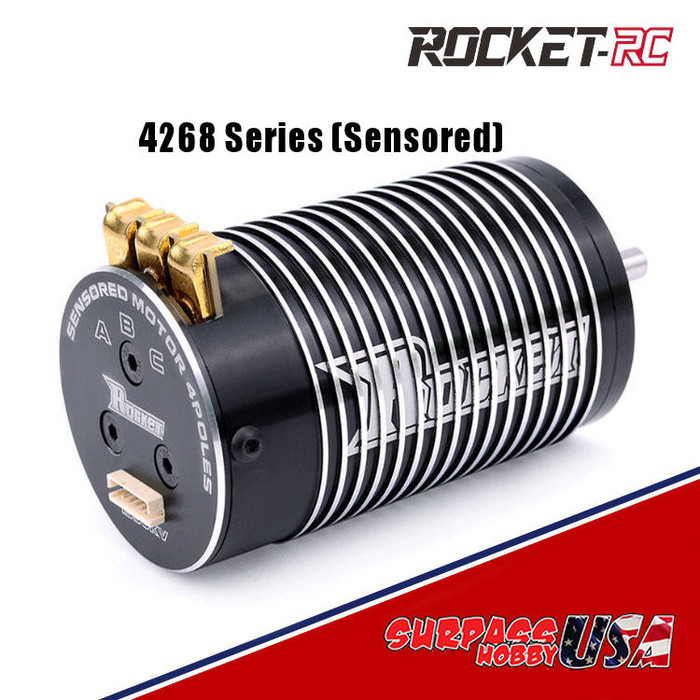

4268 Rocket-RC 1/8 1950Kv Short Sensored Brushless Motor
Rocket 4268
Specifications:
- Excellent for 1/8 GT On-Road Racing, and 1/8 Buggies
- 4268 Sensored Brushless Motor
- Can Dia: 42mm (with Heatsink Fins)
- Can Length: 68mm Short Can
- 5mm Motor Shaft
- Weight: 340g avg.
- 1950Kv avg.
- Max Voltage: 25 Volts
- Max 6 Cell Lipo
Features:
- Sensored Brushless Motor for 1/8 Competition
- Fixed Timing
- 4 Pole 12 Slot Hi-Torque Motor Design
- CNC Machine 6061 T6 Billet Aluminum Heatsink Can Design
- High Purity Copper Windings Maximizes Efficiency
- High RPM ABEC 5 Oversized Bearings
- Universal Fit, Fits all 1/8 On-Road and Off-Road Vehicles. Multi Mounting System for M3 and M4 Motor Screws
- Precision Balanced Rotor for Smooth Operation and Maximum RPM
- Stator - Super Thin (0.2mm) Laminations
- Precision Engineered for Maximum Energy Conversion
- ROAR Approved
- IFMAR, BRCA and EFRA Design Compliance
Includes:
- Includes a 150mm Super Flexible Flat Sensor Wire
* Images represent the design and features of the 4268 Rocket Motor, but not the actual Kv markings of the motor.
