Product Overview

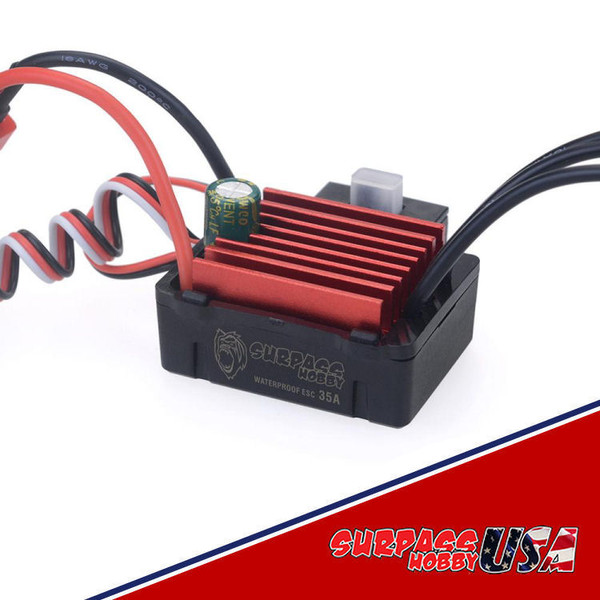

35A ESC Brushless Waterproof Electric Speed Controller with T-Plug (Deans)
Excellent Upgrade or Replacement Speed Controller for the Arrma Groms, Losi NASCAR, and Mini-T 2.0, Mini-B. Also for the Team Associated Reflex 14T & 14B.
Features:
1. Waterproof and dust-proof for all-weather races; Clean and dry it soon after use to avoid the connectors getting rusty.
2. Specially designed for RC cars with excellent start-up, acceleration, and linearity features.
3. Compatible with sensorless brushless motors.
4. Strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery, Over-heat protection, throttle signal loss protection.
6. Easily programmed and compatible with a pocket-sized program card.
Specification:
- Constant Current/Burst Current: 35A/120A
- Motor Type: Sensorless Brushless Motor
- For 2S Lipo or 6 cells NiMH :
- On-Road: 28XX-Size or smaller motor with the KV<6000KV
- Off-Road/Buggy/Monster: 28XX-size or smaller motor with the KV <4000KV
- For 3S Lipo or 9 cells NiMH
- On-Road: 28XX-Size or smaller motor with the KV<4000KV
- Off-Road/Buggy/Monster: 28XX-size or smaller motor with the KV <3000KV
- Suitable Car: 1/20, 1/18, 1/16 and 1/14 Car and Buggy
- Resistance: 0.0004ohm
- Battery: 2-3S Lipo/4-9Cells NiMH
- BEC Output: 5.0V/2A
- T-Plug (Deans Type Battery Connector)
- 3.5mm Motor Connectors
- Dimensions/Weight: 40 x 32 x 20mm / 37g
* To Program Use: KS-100010-02 Program Card for 25A & 35A Mini ESC
